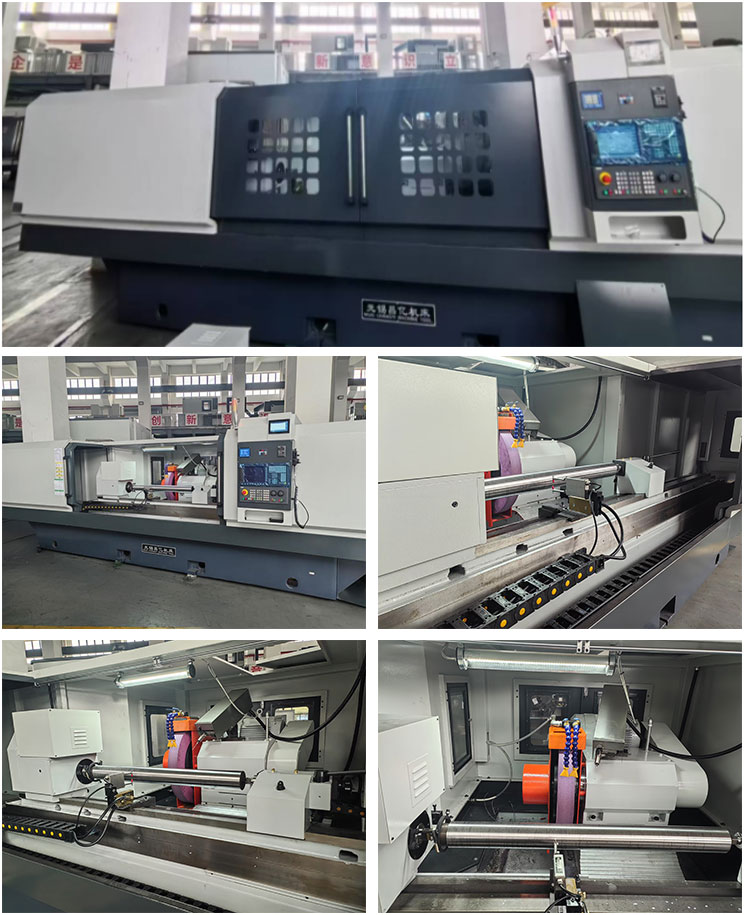

Main uses and structural characteristics of machine tools:
● The machine tool is a two axis (x-axis is transverse feeding of grinding wheel frame and z-axis is longitudinal movement of worktable two linkage CNC cylindrical grinding machine.The CNC system adopts international or domestic well-known brands.It has the functions of automatic feed,withdrawal,rough grinding,fine grinding,dressing of grinding wheel,automatic compensation and so on.With optional automatic measuring instrument,it can realize the full closed-loop function of grinding cycle.
● The grinding wheel spindle adopts sleeve type or dynamic and static pressure spindle,the grinding wheel frame guide rail adopts steel guide rail,the worktable guide rail adopts Flat-V plastic lubrication guide rail,and the servo motor ball screw is used to drive the feed mechanism and the worktable to move.
● The main body of the machine tool is cast by cast iron,with a fully enclosed protective cover,a backpack type electrical cabinet in the rear and a rotary operation screen in the front
Specification parameter list
| Model\ Name |
MK1320
×500 |
MK1332
×500 |
MK1332
×750 |
MK1332
×1000 |
MK1332
×1500 |
MK1350
×2000 |
| OD grinding scope（mm） |
6-200 |
8-320 |
8-320 |
8-320 |
10-320 |
50-500 |
| Grinding length of Work piece（mm） |
500 |
500 |
750 |
1000 |
1500 |
2000 |
| Worktable rotation angle（°） |
+4、-3 |
+4、-3 |
+4、-3 |
+4、-3 B |
+4、-3 |
+4、-3 |
| Center height of tops（mm） |
125 |
180 |
180 |
180 |
180 |
270 |
| Headstock tops(Mohs) |
4# |
4#/5# |
4#/5# |
4#/5# |
4#/5# |
6# |
| Tailstock tops(Mohs) |
4# |
4# |
4# |
4# |
4# |
6# |
| X axis positioning accuracy（um） |
3 |
3 |
4 |
4 |
4 |
8 |
| X axis repetitive positioning accuracy（um） |
2 |
2 |
3 |
3 |
3 |
5 |
| Z axis positioning accuracy（um） |
4 |
4 |
5 |
6 |
8 |
15 |
| Repetitive positioning accuracy（um） |
2 |
2 |
3 |
3 |
4 |
6 |
| Longitudinal movement distance of worktable（mm） |
500 |
500 |
750 |
1000 |
1500 |
2000 |
| Moving distance of grinding wheel frame （mm） |
250 |
380 |
380 |
380 |
400 |
500 |
| Move amount of tail frame sleeve（mm） |
40 |
50 |
50 11 |
50 11 |
50 11 |
60 |
| Motor power of grinding wheel（KW） |
4 |
11 |
|
|
|
18 |
| Total power of machine tool（KW） |
13 |
20 |
21 |
21 |
21 |
32 |
| Weight of machine tool（Kg） |
2800 |
4000 |
4800 |
5300 |
6800 |
9800 |
| OD roundness（um） |
1.5 |
2 |
2 |
3 |
3 |
5 |
| OD cylindricity（um） |
3 |
3 |
4 |
5 |
6 |
8 |
| Surface roughness （um） |
0.32 |
0.32 |
0.32 |
0.32 |
0.32 |
0. 4 |
